The most effective premium parker
MultiBase 2042i for low garages with a small pit depth.
The MultiBase 2042i is the space-saving miracle among our premium parkers. The space-saving system is the most effective solution when it comes to a low installation height and pit depth.
Find your individual solutionProduct Finder
Specification
- For independent parking
- Single platform (SP) for 2 cars or double platform (DP) for 4 cars
- Pit depth from 150 up to 220 cm
- Vehicle dimensions: height 145 to 215 cm, length 500 to 520 cm
- Usable platform width: 230/460 cm, optional up to max. 270/500 cm
- Standard design: 2,000 kg per parking space, optional max. 2,600 kg SP/DP or max. 3,000 kg SP
- Slightly inclined access to all parking levels
- Platform coating: StandardGrip, optional AluLongLife or EasyWalk
Field of application
- In garages for family homes and apartment buildings
- For more parking spaces in office buildings or residential and commercial buildings
- Prefabricated garages
- To increase capacity in underground car parks or parking garages, e.g. of hotels

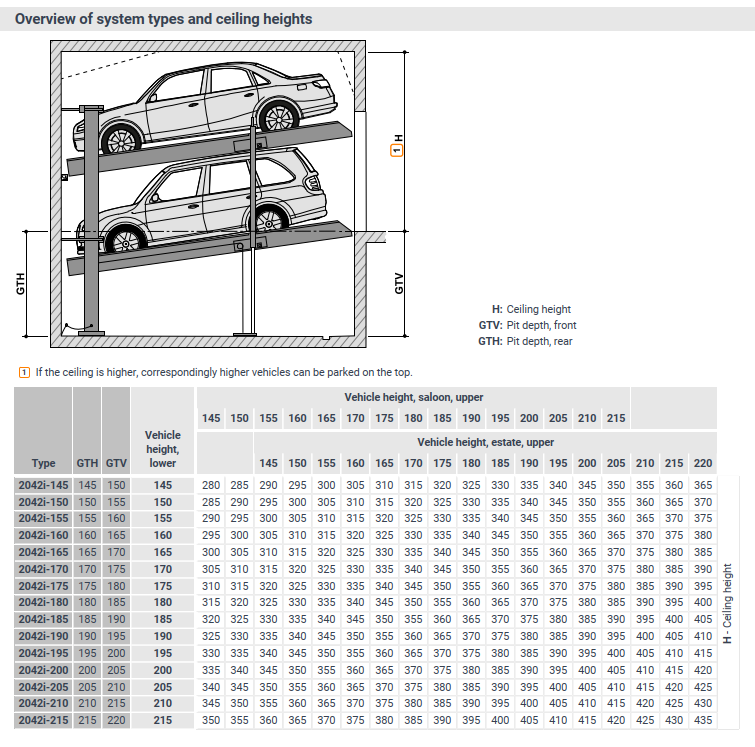

Further visualizations of the MultiBase 2042i

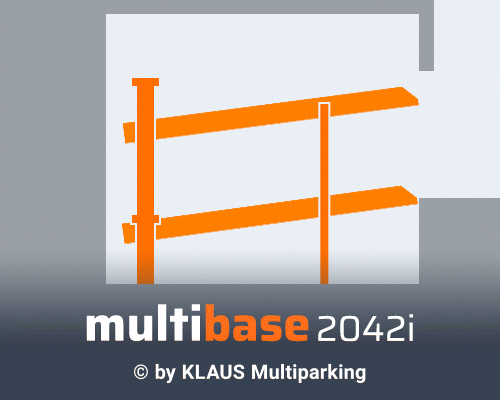

The different product variants of the MultiBase 2042i
