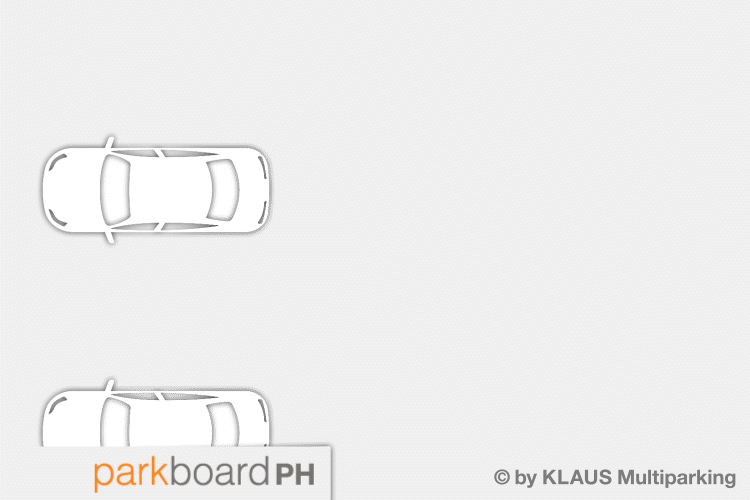

The double parking pallet.

ParkBoard PH pallets move two cars lengthwise.

Pallet systems create parking spaces where there weren’t any before. At the touch of a button, electric motors move the parking pallets along rails, thus giving access to the desired parking space. This enables areas such as access lanes to be transformed into additional parking spaces.

The ParkBoard PH parking pallets can be shifted lengthwise and are available for two vehicles. They can also be retrofitted in existing garages or parking garages.

Find your individual solution
Product Finder

Contact Us

Search For A Sales Representative


  • Each pallet holds two vehicles
  • Pallets travel along rails
  • Vehicle dimensions: widths max. 74.9″, lengths max. 196.9″ heights 4″ lower than the headroom
  • Standard design: 4,400 lbs per parking space, optional max. 5,040 lbs
  • Retrofitting possible, depending on local conditions
  • Platform coating: StandardGrip
  • Independent parking
  • Electronic components are UL compliant
  • Seismic reports upon request available
  • Guaranteed Lifetime Spare Parts Availability

Field of application

  • In garages for family homes and apartment buildings
  • For more parking spaces in office buildings or residential and commercial buildings
  • To increase capacity in underground car parks or parking garages, e.g. of hotels or car dealerships

The different product variants of the ParkBoard PH
