The invisible underfloor parking system

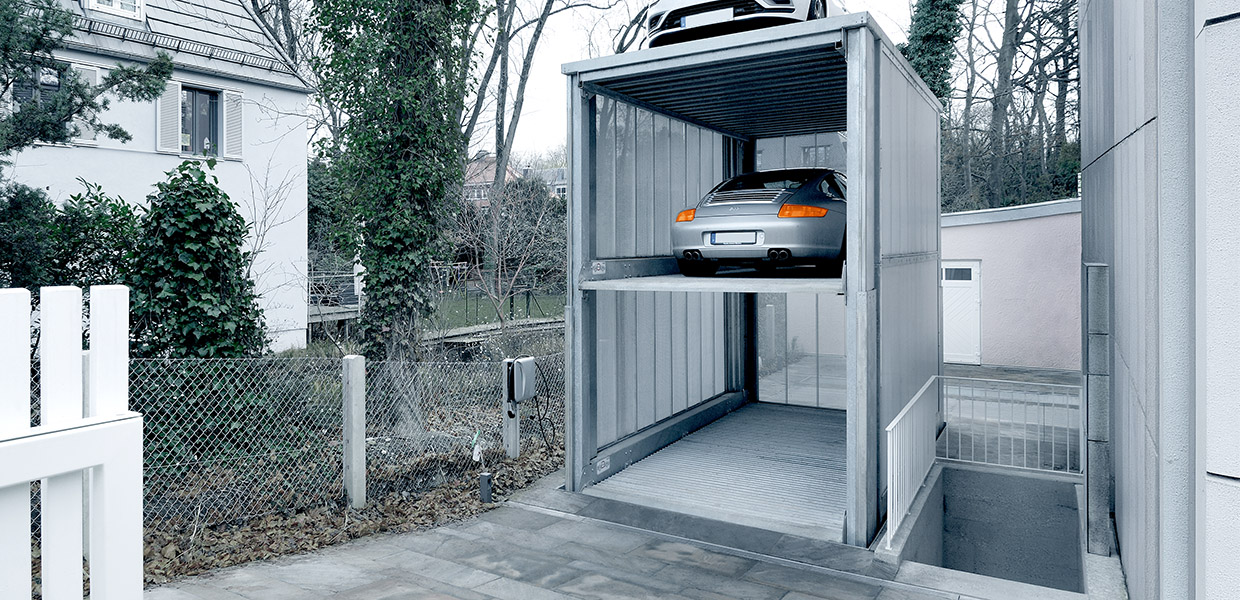

MultiBase U20 can make two cars disappear underground.

Instead of rising above ground, the MultiBase U20 underfloor parking system is sunk underground by two levels. The top platform is level with the ground when lowered. The entire system can then be driven on, enabling valuable extra parking space to be created out of just one driveway. Alternatively, you can transform your front garden into an invisible parking garage and increase the value of your property. In any case, up to two vehicles can be conveniently and safely stored away.

Get the most out of your parking spaces with our premium accessories.

Find your individual solution
Product Finder

Contact Us

Search For A Sales Representative
Contact
Downloads

Specification

  • For independent parking
  • Single platform U20 (SP) for 2 cars
  • Pit depth of standard type: 425/430 cm
  • Vehicle dimensions: height 165 and/or 200 cm, length 500 to 520 cm
  • Usable platform width for standard type: 230 cm, optional up to max. 270 cm
  • Standard design: 2,000 kg per parking space, optional max. 2,600 kg SP
  • Horizontal access to all parking levels
  • Flush to the ground and can be driven on
  • Upper platform: top surface can be freely designed, cassette-type cover, which can be designed to blend in with surroundings on customer's request (e.g. stone layer, lawn). Cover materials and its installations is on customer's responsibility.
  • Lower platform: EasyWalk, optional AluLongLife

Field of application

  • Installation e.g. in the inner courtyard or green spaces of residential and commercial buildings, family homes and apartment buildings, office buildings and hotels
  • Constructions abutting property lines

Further visualizations of the MultiBase U20

MultiBase U20 References

MultiBase U20 in Munich

The different product variants of the MultiBase U20
